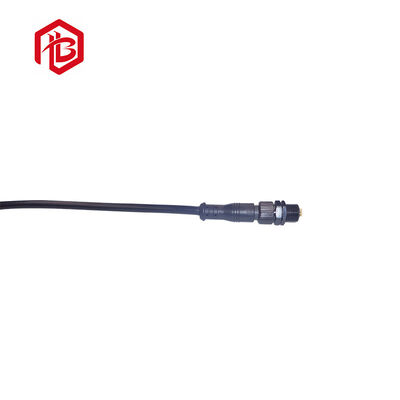

M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector

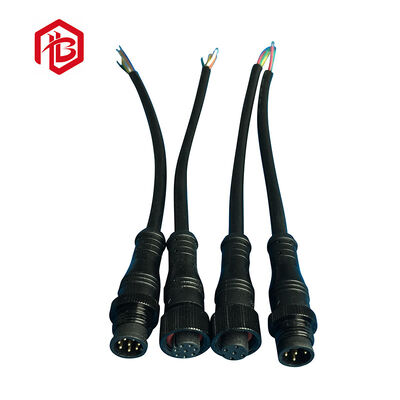

M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector

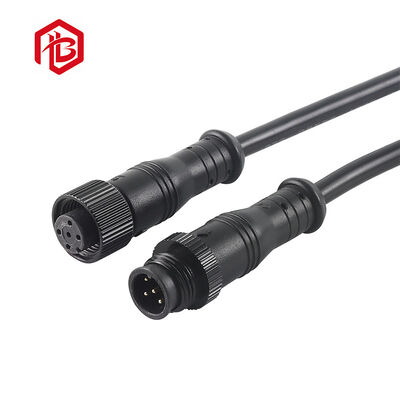

M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector

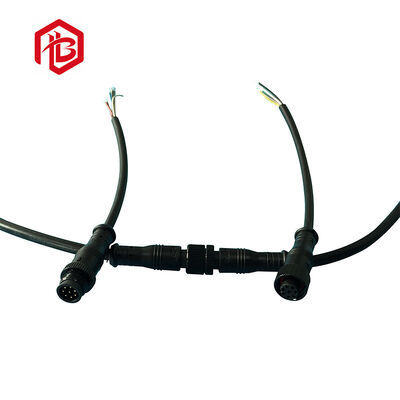

Image Grand :  M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector

Détails sur le produit:

Lieu d'origine: Shenzhen, Chine
Nom de marque: Bett
Certification: UL，CCC，ROHS，CE，TUV
Numéro de modèle: M12

Conditions de paiement et expédition:

Quantité de commande min: Négociable
Prix: négociable
Détails d'emballage: Strictement triés
Délai de livraison: 3-7 jours
Conditions de paiement: LC, D/A, D/P, T/T, Western Union
Capacité d'approvisionnement: 100000 ensembles par semaine
Contact
Description de produit détaillée
Matériau du connecteur étanche M12: 12000 pièces/semaine
Mettre en évidence:

M12 socket 4 pin connector

,

Gold-plated brass circular connector

,

Industrial waterproof circular connector

M12 Socket 4 Pin Gold-Plated Brass Industrial Circular Connector
M8 M16 M15 Electric Plug Waterproof 2 3 4 5 6 Pin M12 Cable Connector for LED Lighting Outdoor
M12 Waterproof Connector Details
Model NO.M12 waterproof connector
Surface TreatmentGold Plating
WarrantyTwo Years
MaterialPVC/Rubber/Nylon
ColorBlack White
Transport PackagePE Bag/Carton or According Customize Packing
TrademarkBett
HS Code8536909000
Contact MaterialBrass
HousingCopper Alloy
IP RatingIP65/IP66/IP67/IP68/IP69
Cable LengthPer Your Requirement
Temperature Range-20~+85
Specification55*30*30 / 38*28*20
OriginChina
Production Capacity12000pieces/Week
Characteristics of M12 Waterproof Connector Series
Number of contact3.4.5.8.12.17
Locking systemscrew M12*1.0
Terminationsolder, moulded on cable, crimp or screw clamp
Wire guage in mm²0.14/0.25/0.34/0.5 etc
Shell protectionIP67/IP68
Mechanical operation>500 mating cycles
Upper temperature+85℃
Lower temperature-25℃
M12 Waterproof Connector Electrical Characteristics
Rated voltage250V, 60V, 30V
Pollution degreeIII
Test voltage500V±15V
Rated current(40℃)4A, 1.5A
Contact resistance≤10mΩ
Insulation resistance≥100MΩ
M12 Waterproof Connector Materials
Pin contactCuZn
Socket contactCuSn
Contact platingAu
Upper temperaturePA66(UL 94V-0)
Female insentPA66(UL 94V-0)
Material of cable jacketPVC or PUR
ScrewCuZn
NutCuZn
Technical Specifications
MaterialPin contact: CuZn
Socket contact: CuSn
Contact plating: Au
Cable Material: PVC/PUR
Electrical PerformanceRated voltage: 250V for 3/4 pin, 60V for 5/6pin, 30V for 8/12/17pin
Rated current: 4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin
Insulation resistance: ≥100 MΩ
Contact resistance: Standard: IEC 61076-2-101
Mechanical PerformanceCoupling method: threaded connection
Direction: Straight/Angled
Mechanical operation: >500 mating cycles
Environmental PerformanceTemperature range: -25°C ~ + 85°C
Protection degree: IP67/IP68
Overview of 3-5 Pin M12 Waterproof Connectors
The Large Flat connector is an ideal solution for various applications. Featuring a threaded locking design, it can achieve an IP68 protection rating. If you require reliable waterproof connectivity at IP68 level, this product would be an excellent choice. It is commonly utilized across a wide range of industries and uses.
Operation Parameters
Voltage Rating300VAC max
Current Rating15A max
Min Wire Size OD3.0mm ~ 6.5mm
Max Wire Size OD6.5mm ~ 10mm
Max.Cable Cross Section Area0.3mm2 ~ 2.5mm2
M12 Waterproof Connector Features
  • Current rating: 20A / 10A (RMS)
  • Available configurations: 2-4 pins for power, 5-9 pins for signal (optional)
  • Ingress protection: IP67 / IP68
  • Rated voltage: 300V
  • Supported cable diameter: 3-11 mm
  • Certified by UL, TUV, CB, CCC, CE, and RoHS
Main Characteristics
  • Sealed against dust and fluid (IP68)
  • Vibration resistance, impact resistance, stretching resistance
  • Socket with cover
  • Cable assembly support
  • Customized cable size and length
Applications of Bett M12 Connectors
  • Communications Application
  • Product coding machines
  • Electric power equipment
  • Communications equipment
Packaging & Delivery
Packing1. plastic
2. carton
3. as the requirement of per custom
PortShenzhen
Lead time7-15 working days
Frequently Asked Questions
Q: What type waterproof connector do you have?
A: We have 17 series type connector, and make more than 3000 types waterproof connector cable. Most of our connector is customized. We focus on LED Waterproof connector, Assembly waterproof connector, Over-mold waterproof connector, T waterproof connector, Y customized waterproof connector.
Q: Is the sample available and free?
A: Sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
Q: Can you assure the quality?
A: Yes, we've gained the CE, RoHS, IP65-IP68, UL certification. And we have strict QC team, all products will be tested before delivery.
Q: What's the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union.
Q: What's the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 days for small quantity.
Product Display

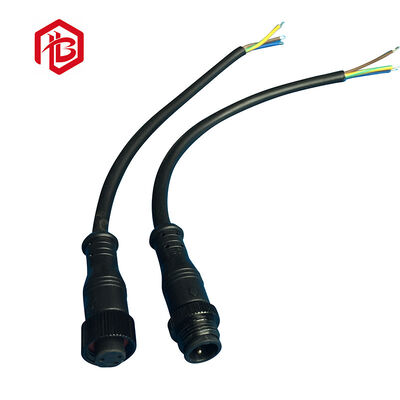

M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector 0 M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector 1 M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector 2 M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector 3 M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector 4 M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector 5 M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector 6 M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector 7 M12 socket 4 pin Gold-plated brass ensure reliable performance Industrial Circular Connector 8
